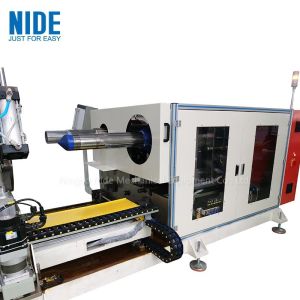

    Automatic Pump Motor Stator Coil Inserting And Expanding Machine

    Ask Lasest Price
    Brand Name : Nide
    Model Number : QKW1-300-300B
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 120set
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Automatic Pump Motor Stator Coil Inserting And Expanding Machine

    Automatic Pump Motor Stator Coil Inserting And Expanding Machine


    This stator manufacturing machine integrates with stator coil inserting machine and coil expanding, is suitable for medium and large induction motor stator, such as water pump motor, submersible pump motor, deep water pump motor, industrial motor, etc.


    Stator Coil Inserting And Expanding Machine Feature

    1. Auto wedge feeding, cutting and forming, and insert into stator slot together with coil ,

    2. Wide application range, high automation,easy operation, easy tooling change etc.

    3. Adopt AC servo motor system and servo wedge cutting system to to control the wire inserting and wedge inserting.

    4. After coil inserting process, it wil transfer to expanding station to do coil expanding. It will circulate the winding inserting and expanding process till it is finished.

    5. Pneumatic system and hydraulic system to control the expanding process.

    6. PLC control.

    7. The parameter can be displayed and set in the HMI.


    pump motor coil inserting machine.jpg

    Stator Coil Inserting And Expanding Machine Technical data

    Product namePump Motor stator coil inserting and expanding machine
    Stator OD≤300mm
    Stator Hight≤300mm
    Stator ID≤200mm
    Wire range0.18~1.2mm
    Displacement of cylinder50L/min
    Power supply380V 50/60HZ 10KW
    Dimension3600mmx1670mmx1700mm
    Weight2000KG

    We can customize the stator inserting and expanding machine according to customer needs, if you need it, please feel free to contact us


    Stator Coil Inserting And Expanding Machine Picture Show

    Stator Coil Inserting And Expanding Machine.jpg

    pump motor coil insertion.jpg

    pump motor stator coil expanding machine.jpg
