    Multishaped Slot Washing Machine Stator Winding Machine

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : ND-SW01E
    Certification : none
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 180 sets per year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Multishaped Slot Washing Machine Stator Winding Machine

    Automatic Multi-shaped slot stator winding machine for BLDC washing machine motor manufacturing


    The automatic multi-shaped slot stator winding machine is used for Automation Washing machine electric motor engineering. The stator winding machine adopts needle coil winding technology, is suitable for Large and medium brushless motor multi-shaped slot stator , such as drum washing machine, turbo washing machine and water pump motor , it adopts single working station structure. The BLDC stator coil winding machine can automatically complete the winding process, high efficiency, safety.


    The BLDC stator winding machine offers complete programming freedom, so you can decide where to anchor the initial starting wire before winding, whether to run the cycle clockwise or anticlockwise, and all the necessary position changes to complete the process.


    Application

    The BLDC stator winding machine is use for Large and medium Special-shaped slot electric motor stator coil winding, such as drum washing machine, turbo washing machine and water pump motor, BLDC , brushless DC motor, etc.


    Specification:

    Product name:Automatic BLDC multi-slot stator winding machine for washing machine motor
    Type:Automatic
    Stator type:Same-shaped slot stator or special-shaped slot stator, customers can set according to their needs
    Stator ID:45-180mm
    Stator OD:60-210mm
    Wire dia.:0.15-1.2 mm
    Stack length:5-160mm
    Winding Method:Needle coil winding
    Winding speed:50-400 r/min
    Winding stations .:one
    Air pressure:0.5MPa~0.7 MPa
    Voltage:380V/50HZ three phase four wires
    Power:10 KW
    Dimension:1200L*750W*1900H
    Weight:About 300kg

    Picture show:

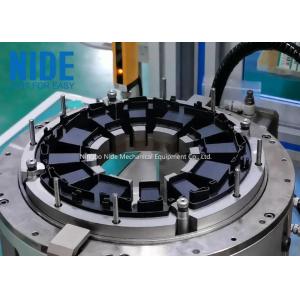

    The automatic stator winding machine is used for Special-shaped slot stator coil winding

    Automatic stator winding machine.jpg

    electric motor stator winding machine.jpgneedle winding machine.jpgBLDC winding machine.jpgwashing machine stator winding machine.jpg
