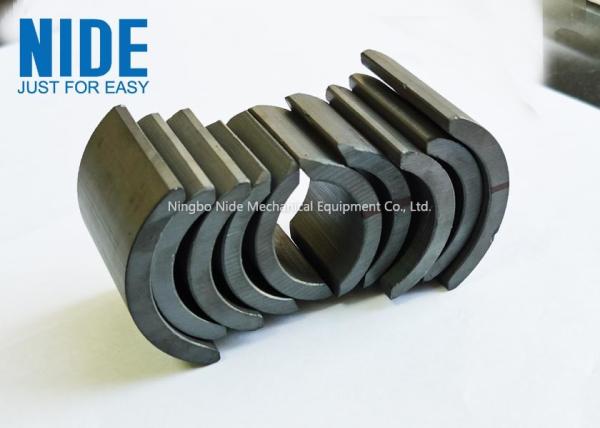

    Black Arc Ferrite Permanent Servo Motor Magnet For Water Pump

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : NDPJ-CW-60
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000 pcs per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Black Arc Ferrite Permanent Servo Motor Magnet For Water Pump

    High temperature resistant servo motor magnet ferrite permanent magnet black arc magnet


    Our ferrite magnet products have stable performance and excellent quality. Mainly used in various motors, household appliances and electro-acoustic products. The shape of the product can be made into a cylindrical shape, a circular ring shape, a square shape and a tile shape according to customer needs.


    Ferrite magnet tile is a kind of metal oxide with ferromagnetism. In terms of electrical properties, the resistivity of ferrite is much larger than that of metal and alloy magnetic materials, and it also has higher dielectric properties. The magnetic properties of ferrite also show high permeability at high frequencies. Therefore, ferrite has become a non-metallic magnetic material with a wide range of applications in the field of high frequency and weak current. Because the magnetic energy stored in the unit volume of ferrite is low, the saturation magnetization is also low (usually only 1/3 to 1/5 of pure iron), which limits the low frequency and strong current of higher magnetic energy density, and also limits Application in the field of high power.


    Parameter


    Product Name:Permanent Magnet Ferrite for Motor Magnet
    Model:Y10-Y38
    Specification:42.5*71*31.6*11.6(L*H*A*h) Can be customized
    shape:Cylindrical, circular, arc,sheet, square, tile, special shape, etc.
    Coercivity:220-275 (KA/m)
    Remanence:0.39 (T)
    Intrinsic coercivity:230-295 (KA/m)
    Maximum magnetic energy product:26-28 (KJ/m3)
    Density:4.8-5.0 (g/cm3)
    Working temperature:80-100 (℃)
    Curie temperature:150-450 (℃)

    Picture display

    motor magnet.jpg

    Ferrite magnet.jpg

    arc ferrite permanent magnet.jpg

    motor ferrite permanent magnet.jpg

    DC MOTOR ferrite magnet.jpg

    motor magnet component.jpg

    Information needed for magnet inquiry

    It will be better if customer could send us detailed drawing including below information.

    1. Magnet drawing

    2. Magnet material

    2. Magnet dimension: width, thickness, tolerance.

    3. Magnet grade

    4. Magnet applications

    5. Required quantity: normally its weight or quantity

    6. Other technical requirement.

    If you are not sure which grade is proper, please contact our engineer. We can also customize according to your needs


    NIDE can offer a variety of motor magnets, please contact us if necessary.
